Chicago Faucets - 1273-NF - Master Rebuild Kit

Chicago Faucets Master Repair Kit for Quaturn™ and Slow Compression Operating Cartridges. This repair kit fixes up to 100 Chicago Faucets!



Our Price: $479.10

Product Code: 1273-NF
Replaced with Chicago Faucets - 1273-ABNF

Description


Chicago Faucets Master Repair Kit for Quaturn™ and Slow Compression Operating Cartridges

The 1273-NF Master Repair Kit Fixes over 100 Chicago faucets! Here is a list of the items included:

QTY:

Part Number:

Description:

4 1-100XTJKNF  Complete Left hand (HOT) Cartridges
4 1-099XTJKNF  Complete Right Hand (COLD) Cartridges
1 377-XTLHJKNF  Complete Left Hand Long Stem Cartridge

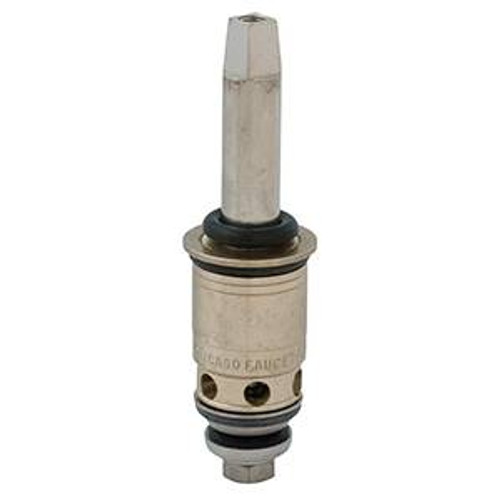

1 377-XTRHJKNF  Complete Right Hand Long Stem Cartridge
3 1-310KJKBNF  Left Hand Stem (HOT)
3 1-311KJKBNF  Right Hand Stem (COLD)
1 274-110KJKBNF  Left Hand Long Stem
1 274-111KJKBNF  Right Hand Long Stem
2 2-328JKRBF  Left Hand (HOT) Sleeves
2 2-329JKRBF  Right Hand (COLD) Sleeves
50 1-327JKNF  Seats
100 1-021JKNF  Seat Washers
–  93-031JKRBF  Brass Washers
25 1-022JKNF  Washer Retainers
24 93-131JKRBF  Brass Washer
24 1-219JKNF  O-Rings
24 1-328JKNF  O-Rings
4 1-214JKCP  Chrome Plated Caps
6 420-010JKRCF  Handle Screws
12 333-097JKNF  Stem Nuts
12 1-031JKNF  Stem Nut Washers
24 2-043JKNF  Cap Thread Gaskets
–  1-043JKNF  Gasket
48 1-519JKNF  O-Ring
