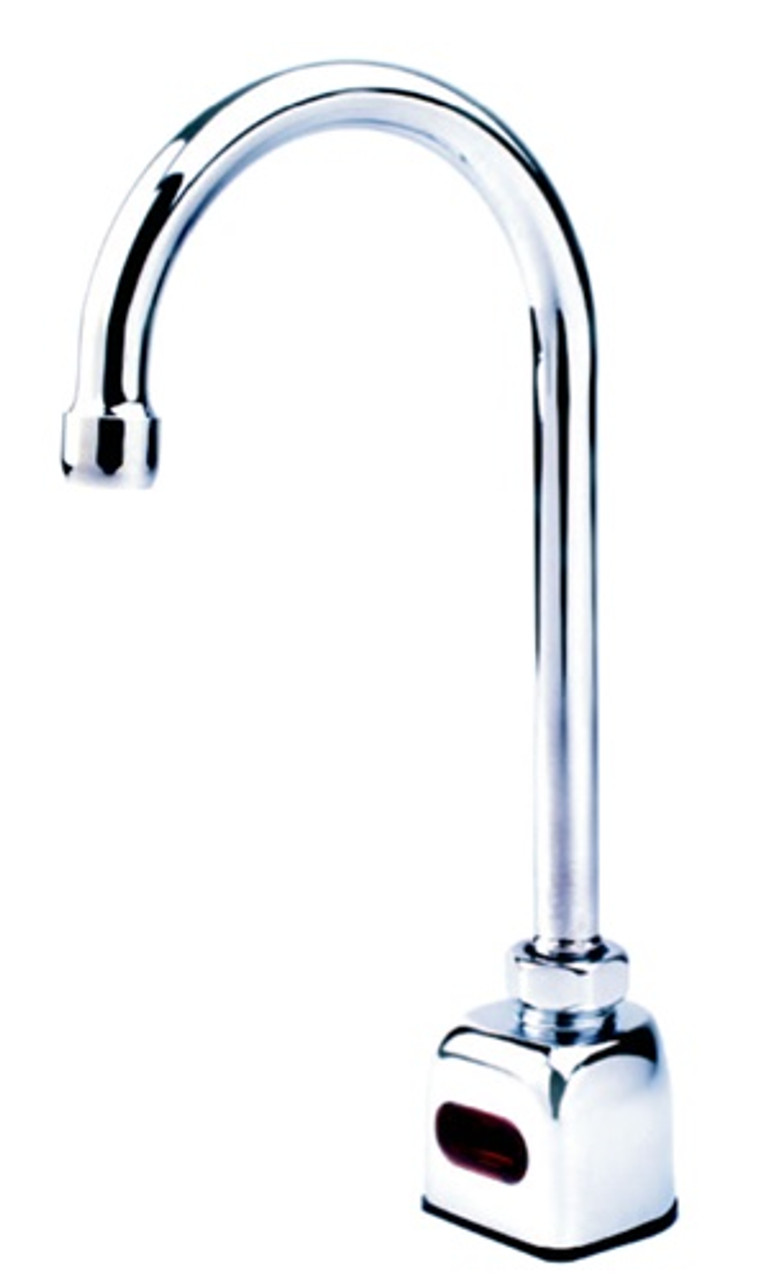

The Hydrotek 6000C Series faucet is a piston operated sensory faucet that
provides a vandal resistant, no touch solution that promotes better
hygiene and energy savings.
Using Hydrotek’s patented goose neck design, the 6000C Series faucet
is ideal in clinics, hospitals, and manufacturing facilities for scrub
stations.
- ADA Compliant. Meets all barrier free codes
- Conserves water and energy
- Easily installed in new or retrofit applications
- Competitively priced for today’s commercial market
- Promotes cleanliness & hygiene
- Proven Hydrotek craftsmanship and reliability
H-6000C AC Powered, non-mixing, Automatic Faucet:
Single-hole deck mount, non-mixing automatic
gooseneck faucet with chrome plated, solid brass construction. Includes
faucet, sensor assembly with armored/vandal resistant control cable,
wall mountable/vandal and water resistant control box, 6” gooseneck
spout with 2.0 GPM Laminar flow control, 6V DC, slow-closing solenoid
valve, plug-in power adapter with armored/vandal resistant output cable,
3/8” copper supply tube, in-line filter and mounting hardware. Faucet
unit is field convertible to battery operation with addition of optional
battery holder and four (4) AA batteries. Features include: ACCU-SENSE
preset/adjustable Sensor Beam Angle, preset/adjustable sensor range,
preset automatic time-out for 0 seconds but adjustable to 15, 30, or 60
seconds, preset shut-off delay for 1 second but adjustable up to 8
seconds.
HB-6000C Battery Operated, Non-Mixing, Automatic Gooseneck Faucet:
Single-hole deck mount, non-mixing, automatic
gooseneck faucet with chrome plated, solid brass construction. Includes
faucet, sensor assembly with armored/vandal resistant control cable,
wall mountable/vandal and water resistant control box, 2.0 GPM Laminar
flow control as standard, 6V DC, slow-closing solenoid valve, battery
holder with (4) AA Batteries, 3/8” copper supply tube, in-line filter
and mounting hardware. Faucet is field convertible to AC powered
operation with addition of optional Plug-in Power Adapter. Features
include: ACCU-SENSE preset/adjustable Sensor Beam Angle,
preset/adjustable sensor range, preset automatic time-out for 0 seconds
but adjustable to 0, 15, 30, or 60 seconds, preset shut-off delay for 1
second but adjustable up to 8 seconds.
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
- ACCU-SENSE adjustable sensor eyes.
- Chrome plated, solid brass construction.
- Wall mountable, waterproof control box with armored, vandal resistant control and power cables.
- Preset/adjustable sensor ranges 6″ – 30″ for various installation requirements.
- Standard automatic time-out feature. Preset at 30 and adjustable to 0, 15, 60 seconds. Prevents accidental sink overflow.
- Shut-off delay is adjustable from 1 second (preset) to 8 seconds.
- Standard single-hole deck mount. Adapts to optional 4″ to 8″ cover plates.
- Includes in-line filters with clean-out trap to reduce maintenance costs.
- Standard 6″ gooseneck spout and 2.0 GPM Laminar Flow Control.
- All parts are field replaceable to ensure quick and easy repair.
- Same faucet is field switchable to/from AC Powered or Battery Powered.
- Slow closing, piston-operated solenoid valve provides reliable and smooth operation without water hammer.
- Superior VSI silicone elastomer piston seals are unaffected by chlorine, chloromines or ammonia.
- Control module automatically performs a unique self-check of all electrical components.
- No-touch system enhances hygiene in medical, institutional, food service industries, etc.
- For the AC with DC Backup version, the battery backup picks up in the event of a power outage, ensuring that the faucet is always ready to go.
|
|
|
|
|
|
|
