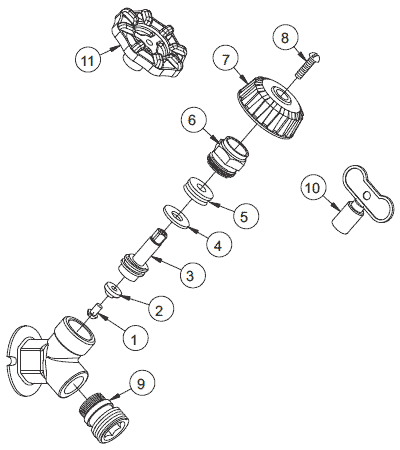

Woodford Model 21 Parts

ITEM  PART#  DESCRIPTION
1 30009 Washer Screw
2 30008 Washer
3 30104 Operating Stem
4 30105 Packing Support Washer
5 30247 EPDM Packing
6 30109 Packing Nut - Chrome
30107 Packing Nut - Brass
7 30120 Wheel Handle - Clear polycarbonate
30233 Wheel Handle - Tan polycarbonate
8 30121 Handle Screw - Nickel
30002 Handle Screw - Brass
9 55437 Hose Nozzle w/O-Ring - Chrome
55435 Hose Nozzle w/O-Ring - Brass
10 50009 Tee Key
11 30106 Wheel handle - Metal (unpainted)
30239 Wheel Handle - Metal (painted)
RK-24   Chrome Repair Kit (Includes items 1-8) (Chrome packing nut and clear handle)
RK-H34  Brass Repair Kit (Includes items 1-8) (Brass packing nut and tan handle)
Sort By:
Page of 1
Woodford 30002 22/17/14 HANDLE SCREW Woodford 30002 22/17/14 HANDLE SCREW
List Price: $0.60
Our Price: $0.48
You save $0.12!
Woodford 30008 14 VALVE RUBBER 1411 Woodford 30008 14 VALVE RUBBER 1411
List Price: $0.75
Our Price: $0.60
You save $0.15!
Woodford 30009 14 RETAINER SCREW 1412 Woodford 30009 14 RETAINER SCREW 1412
List Price: $0.55
Our Price: $0.44
You save $0.11!
Woodford 30104 24 OPERATING STEM Woodford 30104 24 OPERATING STEM
List Price: $6.25
Our Price: $5.00
You save $1.25!
Woodford 30105 24 PACKING WASHER Woodford 30105 24 PACKING WASHER
List Price: $1.45
Our Price: $1.16
You save $0.29!
Woodford 30106 24 METAL HANDLE UNPLATED Woodford 30106 24 METAL HANDLE UNPLATED
List Price: $3.05
Our Price: $2.44
You save $0.61!
Woodford 30107 24 BRASS PACKING NUT Woodford 30107 24 BRASS PACKING NUT
List Price: $4.40
Our Price: $3.52
You save $0.88!
Woodford 30109 24 CHROME PACKING NUT Woodford 30109 24 CHROME PACKING NUT
List Price: $6.35
Our Price: $5.08
You save $1.27!
Woodford 30120 24 WHEEL HANDLE (CLEAR) Woodford 30120 24 WHEEL HANDLE (CLEAR)
List Price: $1.60
Our Price: $1.28
You save $0.32!
Woodford 30121 24 HANDLE SCREW NICKEL PLATED Woodford 30121 24 HANDLE SCREW NICKEL PLATED
List Price: $1.30
Our Price: $1.04
You save $0.26!
Woodford 30233 24 WHEEL HANDLE (BROWN) LEXAN Woodford 30233 24 WHEEL HANDLE (BROWN) LEXAN
List Price: $1.35
Our Price: $1.08
You save $0.27!
Woodford 30239 25 WHEEL HANDLE-METAL 2 INCH Woodford 30239 25 WHEEL HANDLE-METAL 2 INCH
List Price: $2.25
Our Price: $1.80
You save $0.45!
Woodford 30247 EPDM PACKING 21/24/26 40HT H34 Woodford 30247 EPDM PACKING 21/24/26 40HT H34
List Price: $1.50
Our Price: $1.20
You save $0.30!
Woodford 50009 TEE KEY W25A Woodford 50009 TEE KEY W25A
List Price: $2.25
Our Price: $1.80
You save $0.45!
Woodford 55435 Brass nozzle 50003 with O ring Woodford 55435 Brass nozzle 50003 with O ring
List Price: $5.15
Our Price: $4.12
You save $1.03!
Woodford 55437 Chrome nozzle 50004 with "O" ring Woodford 55437 Chrome nozzle 50004 with "O" ring
List Price: $6.30
Our Price: $5.04
You save $1.26!
Woodford RK-24 21/24/26/B24/B26 Chrome Repair Kit Woodford RK-24 21/24/26/B24/B26 Chrome Repair Kit
List Price: $16.65
Our Price: $13.32
You save $3.33!
Woodford RK-H34 H34 Repair Kit Woodford RK-H34 H34 Repair Kit
List Price: $15.75
Our Price: $12.60
You save $3.15!
