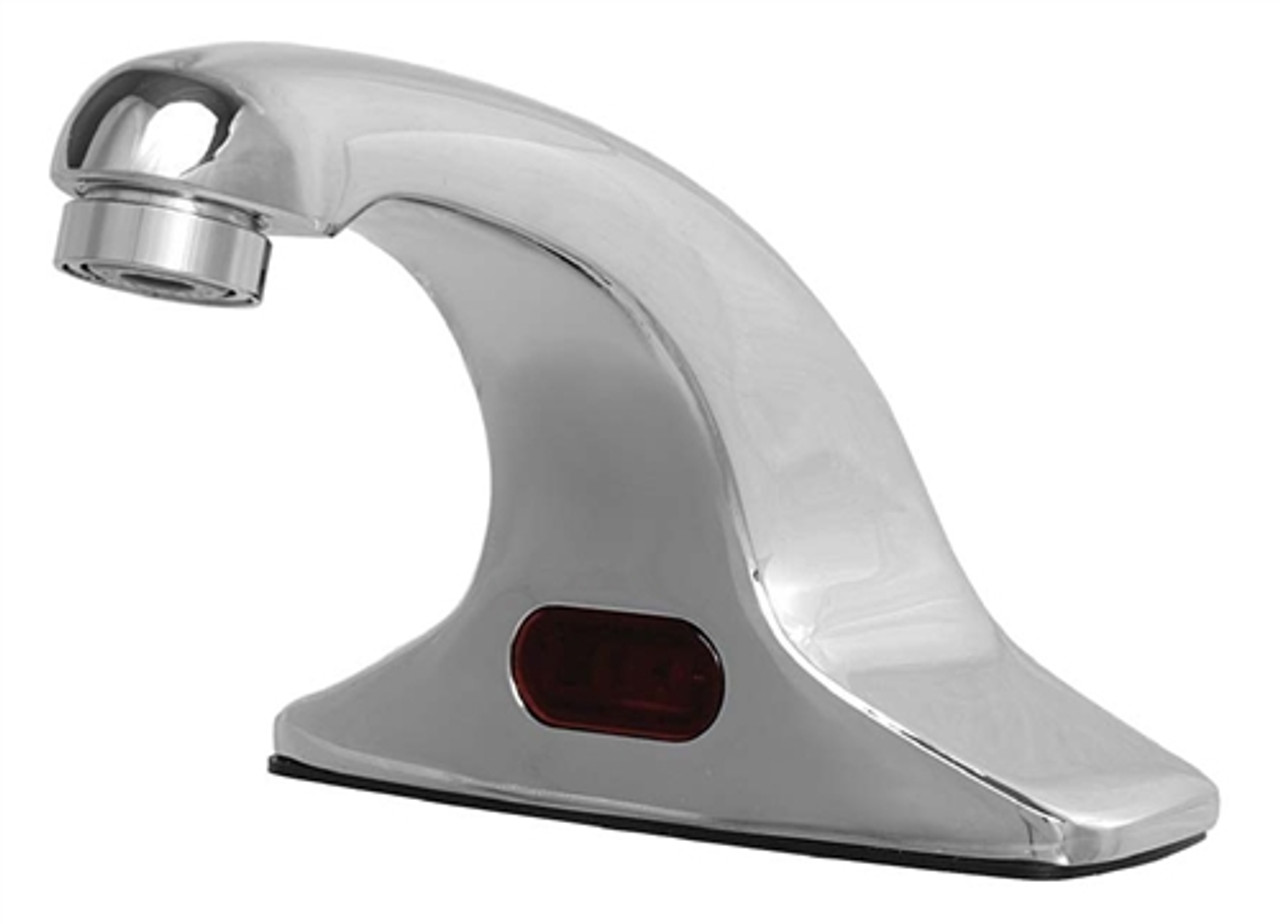

The Hydrotek 1000C Series faucet is a 4" center-set electronic sensor faucet that provides a vandal resistant, no touch bathroom sink solution.
- ADA Compliant. Meets all barrier free codes
- Conserves water and energy
- Easily installed in new or retrofit applications
- Competitively priced for today’s commercial market
- Promotes cleanliness & hygiene
- Proven Hydrotek craftsmanship and reliability
H-1000C AC Powered, Non-Mixing, Automatic Faucet:
Three hole deck mount, non-mixing, automatic faucet with chrome
plated, solid brass 4” centerset construction. Includes faucet, sensor
assembly with armored/vandal resistant control cable, wall
mountable/vandal and water resistant control box, 0.5 GPM vandal
resistant aerator, 6V DC, slow-closing solenoid valve, plug-in power
adapter with armored/vandal resistant output cable, 3/8” copper supply
tube, in-line filter and mounting hardware. Faucet unit is field
convertible to battery operation with addition of optional battery
holder and four (4) AA batteries. Features include ACCU-SENSE
preset/adjustable Sensor Beam Angle, preset/adjustable sensor range,
preset automatic time-out for 30 seconds but adjustable to 0, 15, or 60
seconds, preset shut-off delay for 1 second but adjustable up to 8
seconds.
HB-1000C Battery Operated, Non-Mixing, Automatic Faucet:
Three hole deck mount, non-mixing, automatic faucet with chrome
plated, solid brass 4” centerset construction. Includes faucet, sensor
assembly with armored/vandal resistant control cable, wall
mountable/vandal and water resistant control box, 0.5 GPM vandal
resistant aerator as standard, 6V DC, slow-closing solenoid valve,
battery holder with (4) AA Batteries, 3/8” copper supply tube, in-line
filter, and mounting hardware. Faucet is field convertible to AC powered
operation with addition of optional Plug-in Power Adapter. Features
include: ACCU-SENSE preset/adjustable Sensor Beam Angle,
preset/adjustable sensor range, preset automatic time-out for 30 seconds
but adjustable to 0, 15, or 60 seconds, preset shut-off delay for 1
second but adjustable up 8 seconds.
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Features
- ACCU-SENSE adjustable sensor eyes.
- All solid brass construction.
- Wall mountable, waterproof control box with armored, vandal resistant control and power cables.
- Preset/adjustable sensor ranges 6″ – 30″ for various installation requirements.
- Standard automatic time-out feature. Preset at 30 and adjustable to 0, 15, 60 seconds. Prevents accidental sink overflow.
- Shut-off delay is adjustable from 1 second (preset) to 8 seconds.
- Solid brass body with cast 4″ center-set and 3 point anchoring system. Twist-free and tamper resistant. Adapts to 8″ center-set.
- Includes in-line filter with clean out trap to reduce maintenance costs.
- All parts are field-replaceable to ensure quick and easy repair.
- Same faucet is field switchable to/from AC or battery powered.
- Slow closing, piston-operated solenoid valve provides reliable and smooth operation without water hammer.
- Superior VSI silicone elastomer piston seals are unaffected by chlorine, chloromines or ammonia.
- Standard 0.5 GPM flow control for water conservation and annual savings.
- Control module allows a unique self-check of all electrical components.
|
|
 |
 |
 |
 |

|
