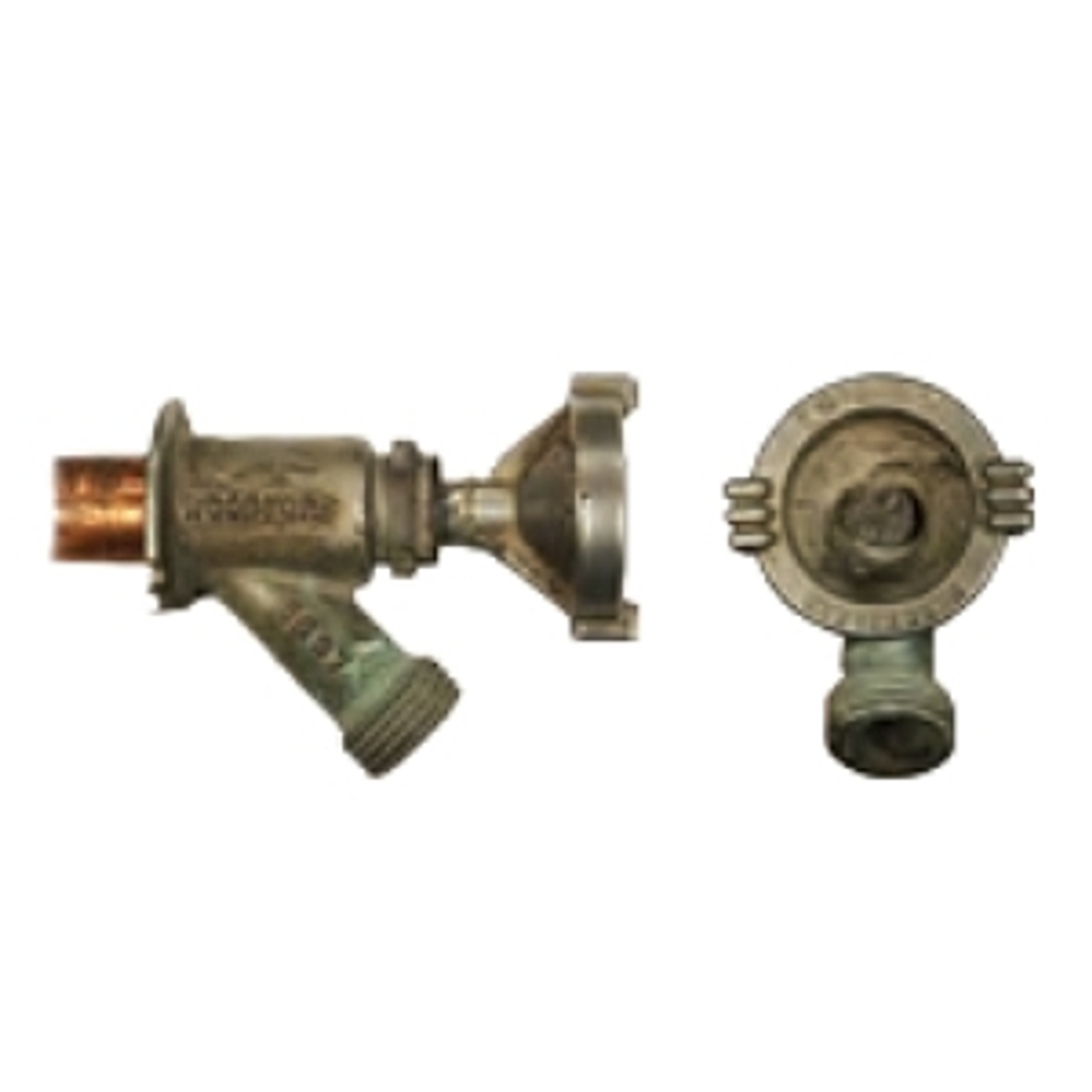

Woodford 17C-16-MH Model 17 Wall Faucet C Inlet 16 Inch, Metal Handle
Combination Copper Sweat Fitting
1/2? K, L or M Inside
3/4? M Only Outside
3/4? male hose thread nozzle
Stainless steel seat - eliminates wire draw
EPDM packing to prevent leaking
Full circle operating threads on valve body and retainer
No-lead solder
Standard ?O? size seat washer
Powder-coated, die cast aluminum handle
Adjustable polycarbonate wall flange
MAX PRESSURE - 125 p.s.i.
MAX TEMPERATURE - 120? F
1/2? K, L or M Inside
3/4? M Only Outside
3/4? male hose thread nozzle
Stainless steel seat - eliminates wire draw
EPDM packing to prevent leaking
Full circle operating threads on valve body and retainer
No-lead solder
Standard ?O? size seat washer
Powder-coated, die cast aluminum handle
Adjustable polycarbonate wall flange
MAX PRESSURE - 125 p.s.i.
MAX TEMPERATURE - 120? F
ASSE 1019 - Type C Listed
CSA, cUPC Approved
MAX PRESSURE - 125 p.s.i.
MAX TEMPERATURE - 120? F
CSA, cUPC Approved
MAX PRESSURE - 125 p.s.i.
MAX TEMPERATURE - 120? F
