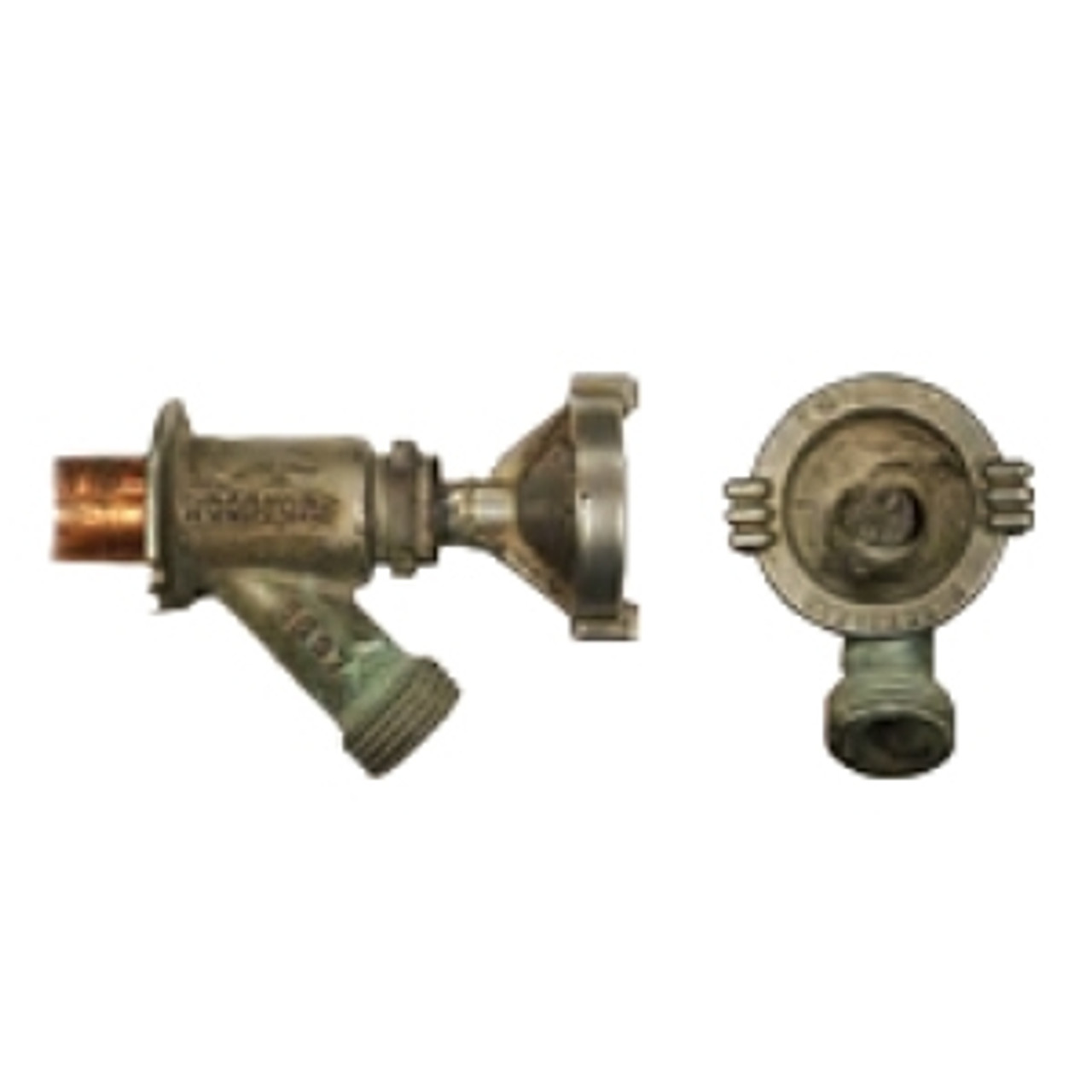

The Woodford freezeless Model 17P is designed and intended for year round residential irrigation purposes regardless of outside temperature. This faucet will not rupture from freezing when the valve is shut off and the hose is removed. The Model 17 contains an integral back-flow protection device which protects up to 125 psi of back-pressure and therefore does not require and add-on vacuum breaker.
The Close Coupled Model 17CC, with standard C inlet, is designed for use in non-freeze areas and fits within 2” x 4” stud wall. (Optional CP or PX inlets are available but will not fit within 2” x 4” wall.)
Combination Inlet Size:
1/2” Female Pipe Thread
3/4” Male Pipe Thread
The Close Coupled Model 17CC, with standard C inlet, is designed for use in non-freeze areas and fits within 2” x 4” stud wall. (Optional CP or PX inlets are available but will not fit within 2” x 4” wall.)
Combination Inlet Size:
1/2” Female Pipe Thread
3/4” Male Pipe Thread
Combination Inlet Size
1/2” Female Pipe Thread
3/4” Male Pipe Thread
3/4” male hose thread nozzle
Stainless steel seat - eliminates wire draw
EPDM packing to prevent leaking
Full circle operating threads on valve body and retainer
No-lead solder
Standard “O” size seat washer
Powder-coated, die cast aluminum handle
Adjustable polycarbonate wall flange
MAX PRESSURE - 125 p.s.i.
MAX TEMPERATURE - 120° F
1/2” Female Pipe Thread
3/4” Male Pipe Thread
3/4” male hose thread nozzle
Stainless steel seat - eliminates wire draw
EPDM packing to prevent leaking
Full circle operating threads on valve body and retainer
No-lead solder
Standard “O” size seat washer
Powder-coated, die cast aluminum handle
Adjustable polycarbonate wall flange
MAX PRESSURE - 125 p.s.i.
MAX TEMPERATURE - 120° F
ASSE 1019 - Type C Listed
CSA, cUPC Approved
MAX PRESSURE - 125 p.s.i.
MAX TEMPERATURE - 120° F
CSA, cUPC Approved
MAX PRESSURE - 125 p.s.i.
MAX TEMPERATURE - 120° F
