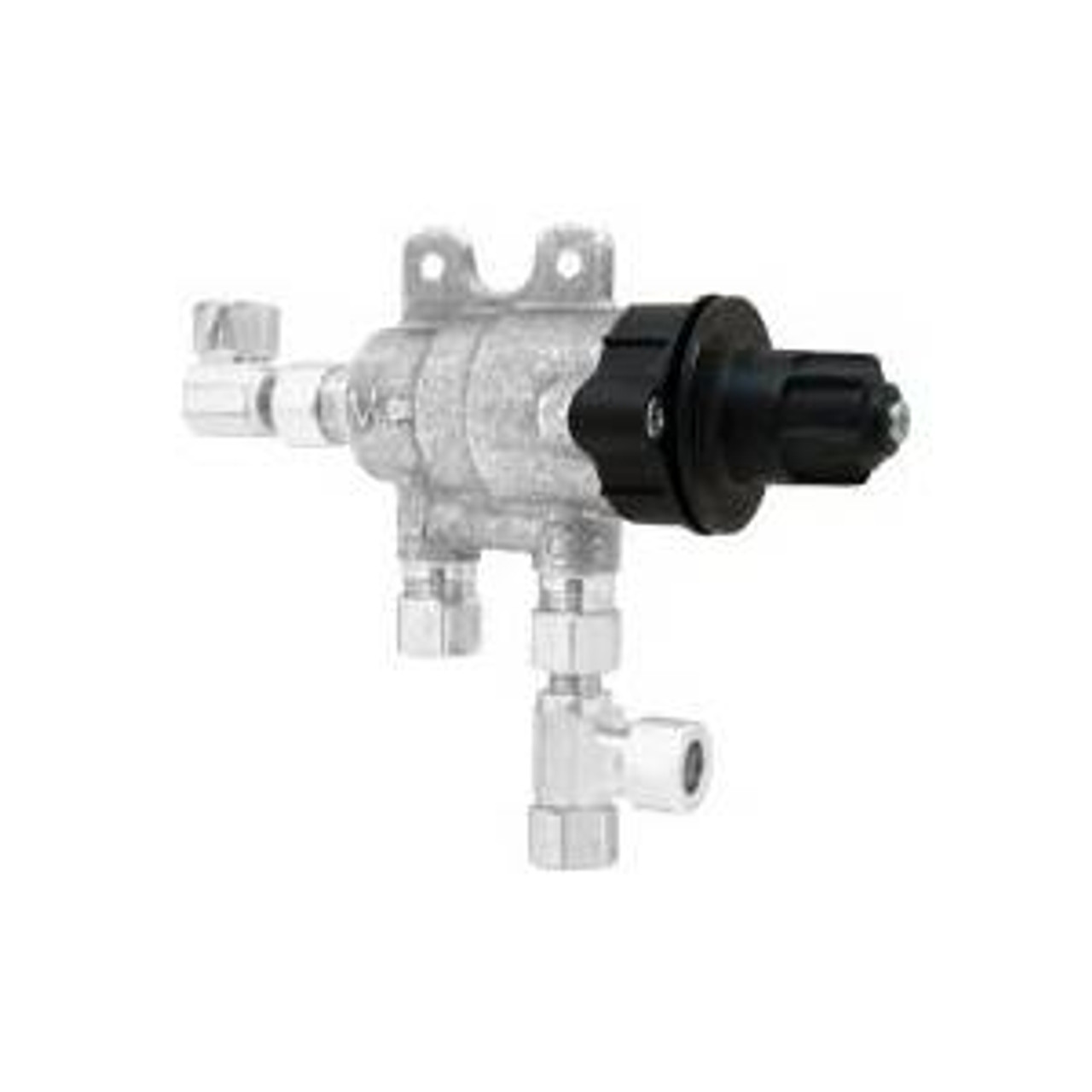

Chicago Faucets 131-CABRCF ECAST® Thermostatic Mixing Valve
Rough Chrome Finish
Standard 3/8" compression inlets and outlets
Integral inlet check valves to protect against cross-flow
Adjustment cap with locking feature
Brass body construction, includes wall bracket
Corrosion resistant internal components
Thermostatic wax element design
Thermostat controls both hot and cold water
Installs between the stop valves and the faucet for Single or multiple faucet installations
Minimum supply pressure: 30psi (207 kPa); Hot inlet temperature: 100°F-180°F (38°C-82°)
Outlet water temperature will be less than hot water inlet temperature
3/8" compression tee inlet connection for cold water bypass feature
3/8" compression angle outlet connection for convenient hot water hook-up
Minimum Flow Rate: 0.35 gpm (@ min. 20 psi)
Maximum Flow Rate: 4.6 gpm (@ min. 125 psi)
Temperature Out: 80°F to 120°F (27°C to 49°C)
ECAST® construction with equal to or less than 0.25% lead content by weighted average
Weight: 1.242lbs
