Please note, This item has been discontinued. Replaced with Symmons 7-230-CF-FS when stock is depleted.

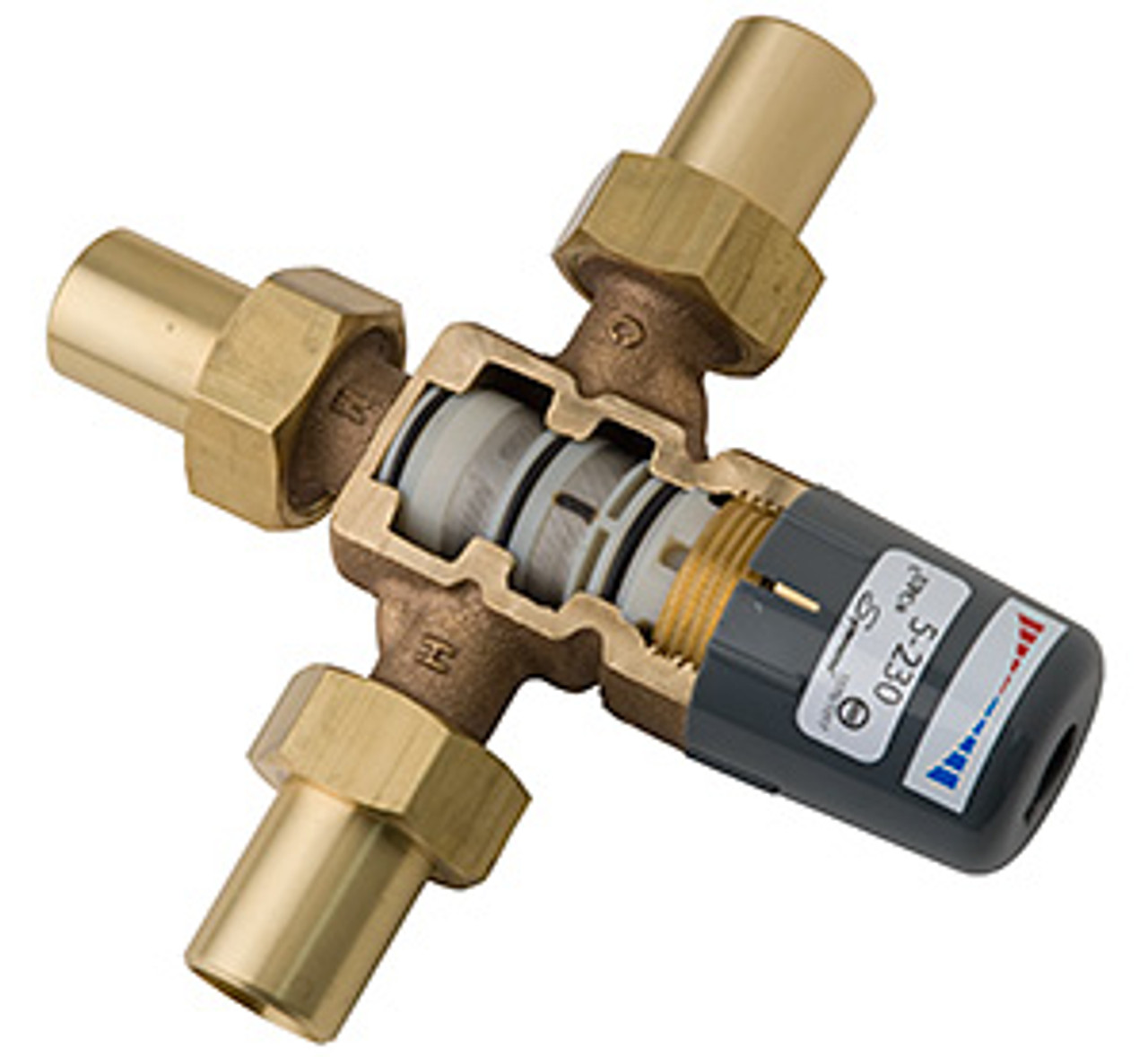

Symmons Maxline 5-230-CK-FS can reduce the risk of scalding by limiting the maximum temperature to individual or multiple fixtures fittings:
Symmons Maxline 5-230-CK-FS can reduce the risk of scalding by limiting the maximum temperature to individual or multiple fixtures fittings:
- Kitchen and Lavatory faucets
- Sensor and Metering faucets
- Tempered water to bathtubs
- Not intended for use on emergency eyewash or shower applications
3/4? sweat inlets/outlet and integral checks
All brass body with dual stainless steel strainers
Vandal-resistant cap/temperature adjustment handle
Standard finish rough brass
Dual certified to ASSE 1017/1070. (.5 - 14 GPM)
All brass body with dual stainless steel strainers
Vandal-resistant cap/temperature adjustment handle
Standard finish rough brass
Dual certified to ASSE 1017/1070. (.5 - 14 GPM)
Control of temperature: ASSE 1070 +/- 7?F (3.9?C) ? ASSE 1017 +/- 3?F (1.7?C) to 5?F (2.8?C) depending on the flow rate
Temperature range: 85?F ? 160?F (29??71?C)
Temperature differential: Outlet temperature adjustable to within 10?F (5.55?C) of inlet water temperatures
Maximum working pressure: 125 psi (862 kPA)
Temperature range: 85?F ? 160?F (29??71?C)
Temperature differential: Outlet temperature adjustable to within 10?F (5.55?C) of inlet water temperatures
Maximum working pressure: 125 psi (862 kPA)
