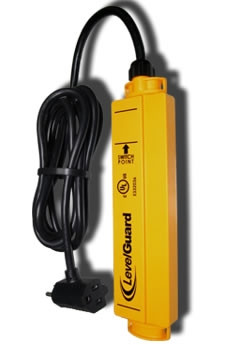

LevelGuard? Sump Pump Control Switch Z24800A1Z
Save money on your pump replacement purchase when you buy a "manual" sump pump without a switch
- Use with manual pumps (no switch) or pumps with detachable float switches (see Installation Instructions)
- Tie-strap attachment for quick and easy installation (Zip-Zip, Plug-Plug, Done!)
- Installs easily over check valves
- Piggyback cord is simple to install
- Needs only 2" clearance from face of unit to operate
9 ft Cord Length
Dimensions: 2.4? x 1.1? x 10.1?
Rated for up to 1/2 horsepower sump pump applications
UL listed Field-Effect technology
Tested to over 1.5 million cycles without failure
Five (5) Year Standard Warranty (Manufacturer's Defects)
Brochure and Specifications for Z24800A1Z (PDF)
Installation Instructions / Owner's Manual (PDF)
LevelGuard Sump Pump Switch Demonstration Video -
Dimensions: 2.4? x 1.1? x 10.1?
Rated for up to 1/2 horsepower sump pump applications
UL listed Field-Effect technology
Tested to over 1.5 million cycles without failure
Five (5) Year Standard Warranty (Manufacturer's Defects)
Brochure and Specifications for Z24800A1Z (PDF)
Installation Instructions / Owner's Manual (PDF)
LevelGuard Sump Pump Switch Demonstration Video -
Uses patented "Field-Effect" sensing technology to detect water level through the water-tight thermoplastic shell.
RoHS Compliant, UL-Listed
NO MOVING PARTS to wear out or bind
Reliably controls a 6.7" (170mm) water column
Includes fused over-current protection against pump electrical failures
Requires less working space than mechanical float switches
RoHS Compliant, UL-Listed
NO MOVING PARTS to wear out or bind
Reliably controls a 6.7" (170mm) water column
Includes fused over-current protection against pump electrical failures
Requires less working space than mechanical float switches
Will it work with my pump?
LevelGuard? Sump Pump Control replaces mechanical fl oat-switches on new and existing sump pumps.
The Sump Pump Control is designed to work with piggyback-plug style electrical systems ONLY.
DO NOT use LevelGuard Sump Pump Controls in systems where the switch is directly integrated into the pump.
LevelGuard? Sump Pump Control replaces mechanical fl oat-switches on new and existing sump pumps.
The Sump Pump Control is designed to work with piggyback-plug style electrical systems ONLY.
DO NOT use LevelGuard Sump Pump Controls in systems where the switch is directly integrated into the pump.
